Custom wine cellars
Drawings that help cellar builders close the design.
Racking elevations with bottle counts, room envelope details, cooling coordination and renders for residential and hospitality wine cellars. Delivered under your title block.
Who we work for
You build the cellar. We draw it.
Every cellar you quote needs a layout, rack elevations with bottle counts and a render the client can approve. We produce them so your designers can sell and build.
Custom cellar builders
Design, fabricate and install cellars for luxury homes, restaurants and hotels.
Racking manufacturers
Need extra CAD capacity when the design queue backs up.
Interior designers & architects
Include a cellar in a luxury residence and need it detailed.
Hospitality & restaurant teams
Wine walls, private dining cellars and hotel wine rooms.
What we draw
Everything a cellar package needs
- RACK
Racking elevations
Every wall drawn to scale, with bottle counts by section and rack type.
- PLAN
Plans & ceiling plans
Layout, door, lighting and cooling locations, with a bottle count summary.
- ROOM
Room envelope details
Insulation, vapor barrier, glass walls and door seals, drawn to the R-values and climate target the cooling system needs.
- COOL
Cooling coordination
Unit, grille and line-set locations to the manufacturer's specs; sizing stays with your cooling supplier.
- 3D

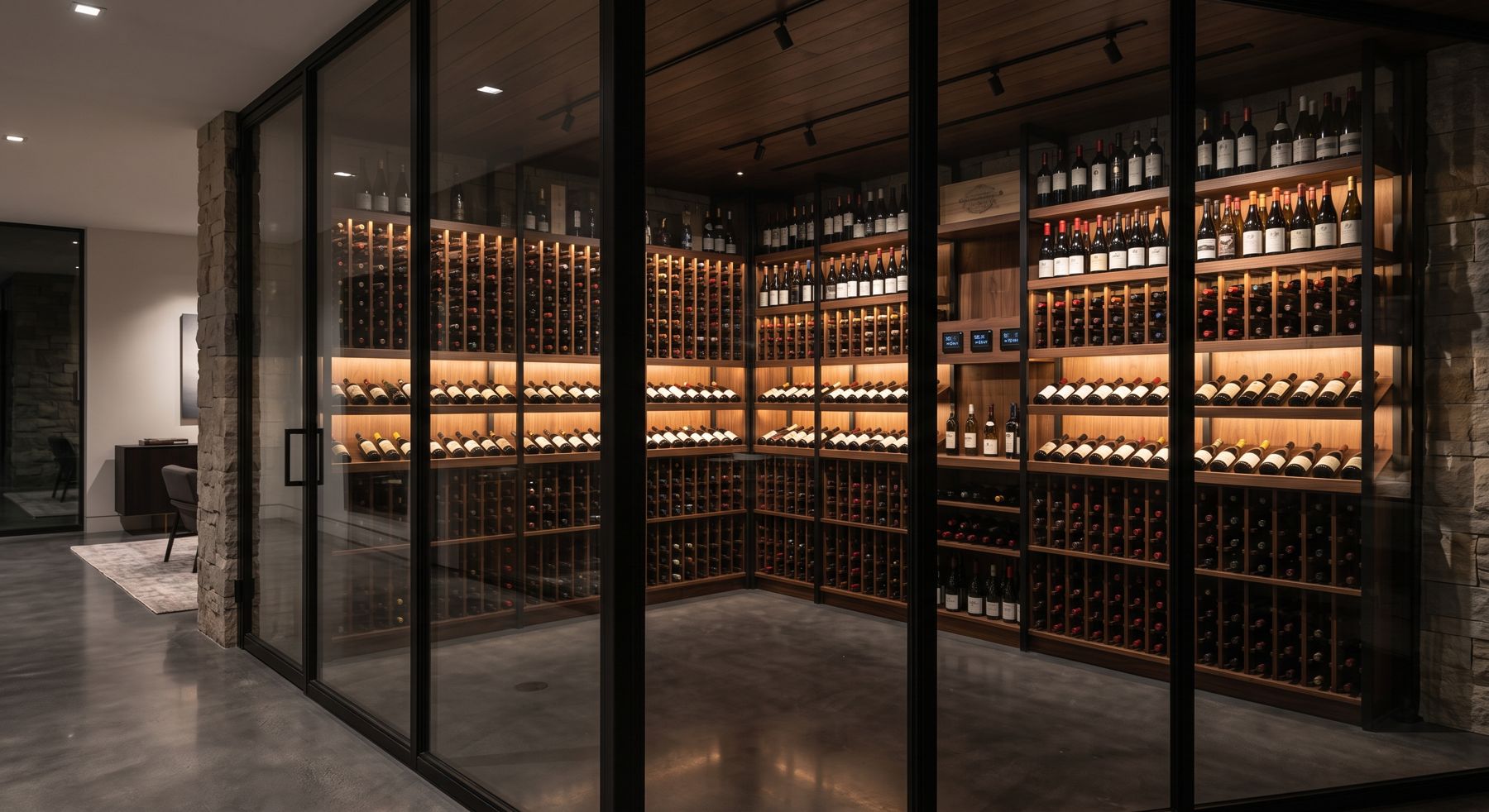

Renders
Photorealistic images for the client presentation.
- SHOP
Fabrication drawings
Rack details and cut information for your shop once the design is approved.
Sample set
Inside a cellar design set
A typical walk-in cellar set. Sheets follow the US National CAD Standard, or your own numbering, and are issued under your logo and title block.
- G-001Cover, sheet index & room notesProject data, bottle target, racking system
- A-101Floor plan & bottle count summaryRack runs, door, totals by section
- A-102Reflected ceiling plan & lightingTrack and under-shelf LED, supply grille
- A-201Rack elevations A–CSection types and bottle counts per wall
- A-501Room envelope detailsInsulation, vapor barrier, glass wall and door seals
- M-101Cooling coordinationUnit, grille and line-set locations from the supplier's specs
- A-901RendersPresentation views for client approval
Packages
Fixed price per cellar, agreed before we start
You price our drawings into your proposal, so you get a number and a delivery date up front.
Design Package
3–5business days
- Floor plan and rack elevations
- Bottle count per section
- One photorealistic render
Construction Set
5–10business days
- Full elevations and plans
- Room envelope details
- Cooling and lighting coordination
- Fabrication details for your shop
- One revision round included
CAD overflow
Monthlycapacity
- A team trained on your rack system
- Your templates and title block
- Weekly log of drawings delivered
How it works
From site measure to an approved design
- STEP 1
Send the room
Measurements or plans, photos, bottle target and racking style.
- STEP 2
Get a price and date
Fixed price and delivery date within one business day.
- STEP 3
Receive the package
PDF set, native files and render, under your title block.
- STEP 4
Revise and build
One revision round included. The construction set follows the same model.
White label
We work behind your brand, never around it
Your design work is part of what you sell. We put that in writing before the first project.
- We never pitch your clientsNo drawings or consulting offered to the owners, hotels or developers you work with.
- Your title block, your standardsWe stay invisible to your client unless you ask us to join a call.
- Your templates stay yoursFamilies, templates, pricing and client data are used only by your assigned team.
- A competitor list we respectName your direct competitors and we will not take work from them while we work together.
- Confidentiality signed up frontMutual NDA and non-solicitation before you send the first file.
FAQ
Questions cellar builders ask us
What room specs do you draw to?
Common industry practice: walls insulated to at least R-19 and ceilings to R-30, a 6 mil poly vapor barrier on the warm side, an exterior-grade door with weatherstripping, and a room held near 55°F at 60–65% relative humidity. If your cooling supplier or your own spec asks for more, we draw to that.
Do you size the cooling system?
No. We coordinate unit, grille and line-set locations from your cooling supplier's specs. Sizing stays with them.
Which racking types do you draw?
Wood, metal and cable systems, label-forward displays, case storage and glass enclosures.
Can you work with our rack system?
Yes. We build a library from your product dimensions and use it on every project.
Which software do you use?
Revit or AutoCAD for drawings and D5 Render for images. You receive the PDF set and the native files.
What hours do you work?
US Eastern and Central business hours, with same-day answers.
Try us on a live project
Send us one open cellar. Get the design package in 5 days.
If it does not help you close, you do not pay for it.
- Room measurements or plans
- Photos and bottle target
- Racking style you are quoting
